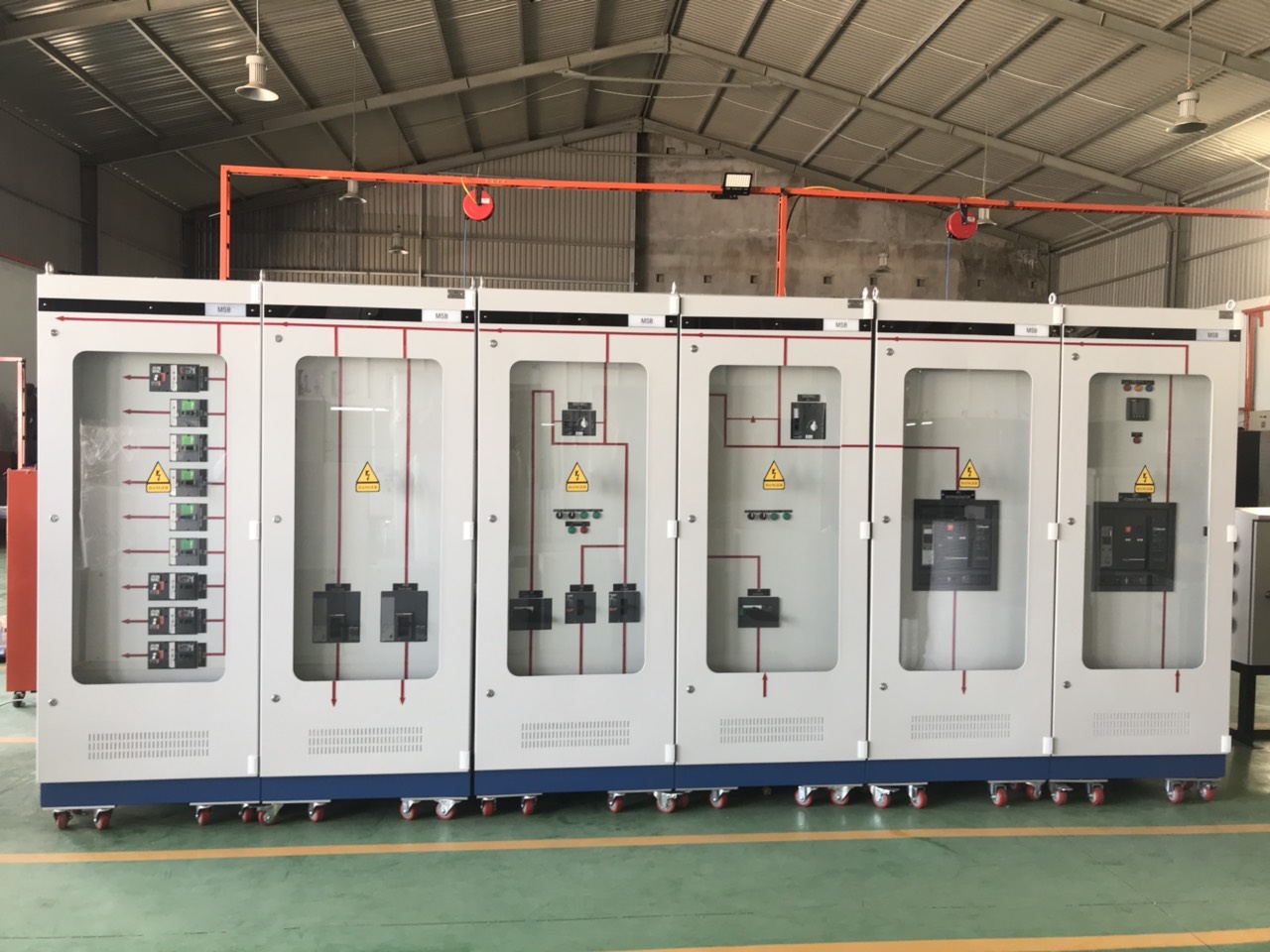

MSB – Main Switch Board
Automatic Transfer Switch
Synchronizing
Capacitor Bank
INFORMATION
PARAMETERS
DIMENSIONS
Automatic Transfer Switch
Synchronizing
Capacitor Bank
TECHNICAL DATA
Standard : IEC 61439-1, TCVN
•Degree of protection, :IP42, up to IP 55 ,IK 10
•Fire resistance : 750 /30s
•Environment temperature 40oC
•Rate voltage (Ue) : 690Vac
•Rate insulation voltage (Ui): 1000V
•Rate frequency : 40-60Hz
•Rate short time withstand current (Icw) : up to 100 Ka 1s
•Rate current (In) current : up to 6300A
•Cooling : Natural / forced ventilation
•Framework steel (Alu-zinc or Painted) : 2.0 mm
•Base frame steel (Painted) :2.0-2.5mm
•Doors and plates steel (Painted) : 2.0 mm
•Mounting plates steel (Alu-zinc or Painted) :1.5 mm
•Internal partitions steel (Alu-zinc or Painted) :1.0-1.5 mm
•Internal separation :Form 2, 3, up to 4b
•Cubicle dimension (mm)
- Height (1800,2000, 2200, 2600)
- Width (400, 500, 600, 700, 800, 1000, 1200)
- Depth (600, 800, 1000, 1200)
- Height (1800,2000, 2200, 2600)
- Width (400, 500, 600, 700, 800, 1000, 1200)
- Depth (600, 800, 1000, 1200)
•Ral : 7035, other request.
TECHNICAL DATA
Standard : IEC 62271-202
•Degree of protection, :IP42, up to IP 55 ,IK 10
•Fire resistance : 750 /30s
•Environment temperature 40oC
•Rate voltage (Ue) : 690Vac
•Rate insulation voltage (Ui): 1000V
•Rate frequency : 40-60Hz
•Rate short time withstand current (Icw) : up to 100 Ka 1s
•Rate current (In) current : up to 6300A
•Cooling : Natural / forced ventilation
•Framework steel (Alu-zinc or Painted) : 2.0 mm
•Base frame steel (Painted) :2.0-2.5mm
•Doors and plates steel (Painted) : 2.0 mm
•Mounting plates steel (Alu-zinc or Painted) :1.5 mm
•Internal partitions steel (Alu-zinc or Painted) :1.0-1.5 mm
•Internal separation :Form 2, 3, up to 4b
•Cubicle dimension (mm)
- Height (1800,2000, 2200, 2600)
- Width (400, 500, 600, 700, 800, 1000, 1200)
- Depth (600, 800, 1000, 1200)
- Height (1800,2000, 2200, 2600)
- Width (400, 500, 600, 700, 800, 1000, 1200)
- Depth (600, 800, 1000, 1200)
•Ral : 7035, other request.
