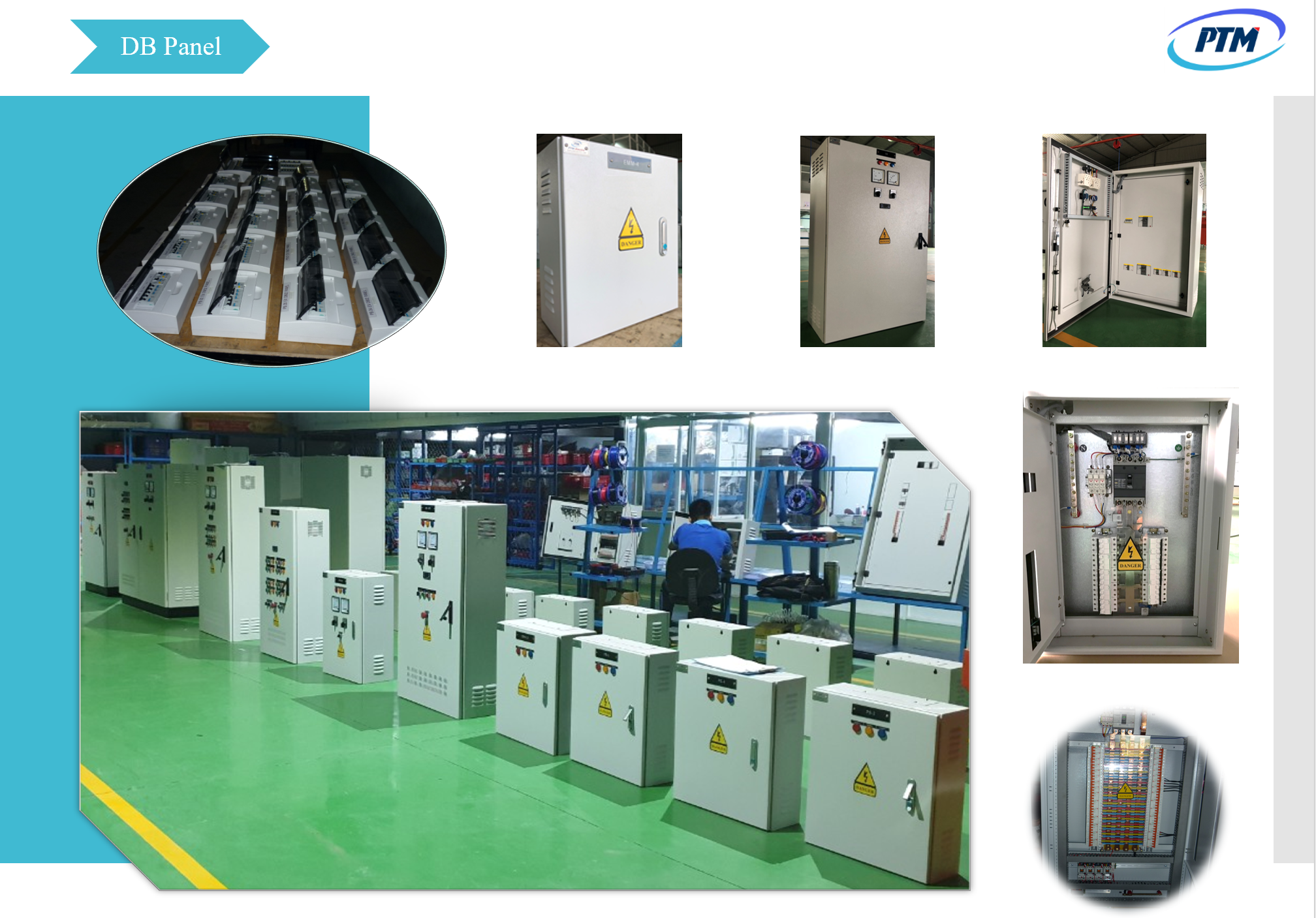

DB - Distribution Board
Compact and fully featured
INFORMATION
PARAMETERS
DIMENSIONS
Compact and fully featured
TECHNICAL DATA
Standard : IEC 61439-1, TCVN
•Degree of protection, :IP42, up to IP 65
•IK 10
•Environment temperature : 40oC
•Rate voltage (Ue) : 690Vac
•Rate insulation voltage (Ui): 1000V
•Rate frequency : 40-60Hz
•Rate short time withstand current (Icw : up to 65 Ka 1s
•Rate current (In) current : up to 1250A
•Framework steel ( Painted) ,Stainless steel : 1.2-2.0 mm
•Base frame steel (Painted), Stainless steel :1.5-2.0mm
•Doors and plates steel (Painted), Stainless steel :1.5- 2.0 mm
•Mounting plates steel (Alu-zinc ), Stainless steel :1.5-2.0 mm
•Internal separation :Form 2,
•Cubicle dimension (mm)
Height (500, 600,800, 1000,1200,1400)
Width (400, 500, 600, 700, 800, 1000)
Depth (200, 250, 300, 400, 500,600)
Height (500, 600,800, 1000,1200,1400)
Width (400, 500, 600, 700, 800, 1000)
Depth (200, 250, 300, 400, 500,600)
•Ral : 7035, other request.
TECHNICAL DATA
Standard : IEC 61439-1, TCVN
•Degree of protection, :IP42, up to IP 65
•IK 10
•Environment temperature : 40oC
•Rate voltage (Ue) : 690Vac
•Rate insulation voltage (Ui): 1000V
•Rate frequency : 40-60Hz
•Rate short time withstand current (Icw : up to 65 Ka 1s
•Rate current (In) current : up to 1250A
•Framework steel ( Painted) ,Stainless steel : 1.2-2.0 mm
•Base frame steel (Painted), Stainless steel :1.5-2.0mm
•Doors and plates steel (Painted), Stainless steel :1.5- 2.0 mm
•Mounting plates steel (Alu-zinc ), Stainless steel :1.5-2.0 mm
•Internal separation :Form 2,
•Cubicle dimension (mm)
Height (500, 600,800, 1000,1200,1400)
Width (400, 500, 600, 700, 800, 1000)
Depth (200,250, 300, 400, 500,600)
Height (500, 600,800, 1000,1200,1400)
Width (400, 500, 600, 700, 800, 1000)
Depth (200,250, 300, 400, 500,600)
•Ral : 7035, other request.
