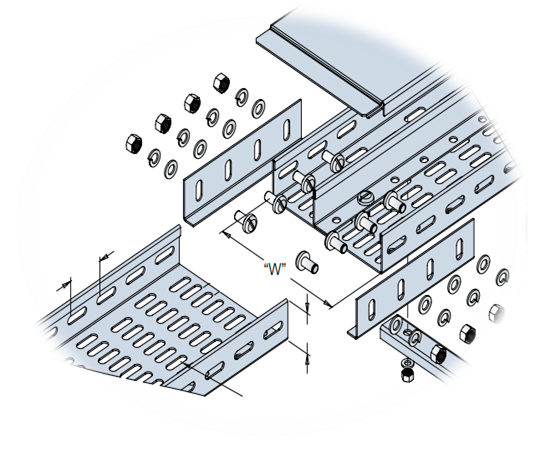

Cable Tray

Class Designation

Heavy type NEMA classification

Material

Steel sheet

Finish

Galvanized, Hot dip galvanized, Powder coated, Stainless steel

Slot Dim

8x20mm, Factory standard.

Stock High

50 up to 300mm, other by request.

Stock Length

2400mm

Stock widths

100-1000mm, other by request

Fittings

A full range, bends, risers, tees, crosses & reducers

Accessories

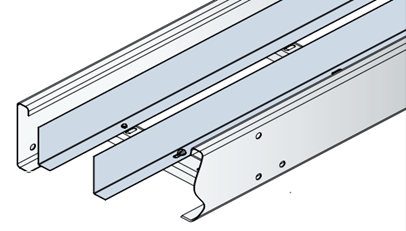

Flat cover, fitting, barrier strips , support.

Range

Type

Size H

Size W

Finish

T 2.0

L

5

10

P

T 2.0 =  2.0mm Thick

T 1.5 =  1.5mm Thick

T 1.0 =  1.0mm Thick

T 2.5 =  2.5 mm Thick

L= Straight Length

5=50mm

10=100mm

……..

30=300mm

10=100mm

30=300mm

……..

80=800mm

P = Powder coated

H = Hot Dip Galva

G = Galvanized

S = Stainless Steel

Range

Type

Size H

Size W

Finish

T 2.0

L

5

10

P

T 2.0 =  2.0mm Thick

T 1.5 =  1.5mm Thick

T 1.0 =  1.0mm Thick

T 2.5 =  2.5 mm Thick

L= Straight Length

5=50mm

10=100mm

……..

30=300mm

10=100mm

30=300mm

……..

80=800mm

P = Powder coated

H = Hot Dip Galva

G = Galvanized

S = Stainless Steel
