Cable Ladder
Specification
|
Class Designation |
Heavy type NEMA classification |
|
Material |
Steel sheet |
|
Finish |
Galvanized, Hot dip galvanized, Powder coated, Stainless steel |
|
Rung Spacing |
300 mm |
|
Inside Depth |
76mm cable laying depth |
|
Stock Length |
2400mm |
|
Stock widths |
200-1000mm, other by request |
|
Fittings |
A full range, bends, risers, tees, crosses & reducers |
|
Accessories |
Flat cover, fitting, barrier strips & hold down clamps |
Specification
|
Class Designation |
Heavy type NEMA classification |
|
Material |
Steel sheet |
|
Finish |
Galvanized, Hot dip galvanized, Powder coated, Stainless steel |
|
Rung Spacing |
300 mm |
|
Inside Depth |
76mm cable laying depth |
|
Stock Length |
2400mm |
|
Stock widths |
200-1000mm, other by request |
|
Fittings |
A full range, bends, risers, tees, crosses & reducers |
|
Accessories |
Flat cover, fitting, barrier strips & hold down clamps |
When Ordering
|
Range |
Type |
Size |
Finish |

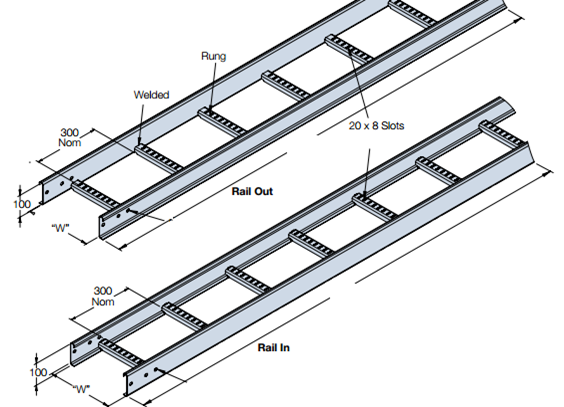

Rail Direction |
|
L 2.0 |
L |
20 |
P |
RI |
|
L 2.0 = 100 mm high 2.0mm L 1.5 = 100 mm high 1.5mm L 2.5 = 100 mm high 2.5mm |
L= Straight Length |
20=200mm 30=300mm …….. 80=800mm |
P = Powder coated H = Hot Dip Galva G = Galvanized S = Stainless Steel |
Ri = Rail In Ro = Rail Out |
