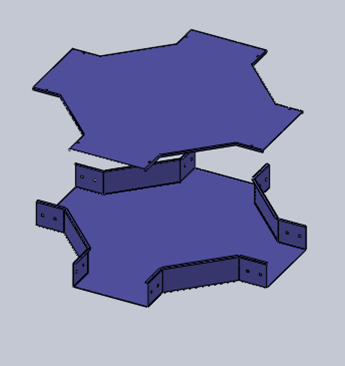

Cable Duct Fitting - Cross
NOTE : Equal or un equal cross can be supplied. When ordering state widths W1xW2xW3xW4
INFORMATION
PARAMETERS

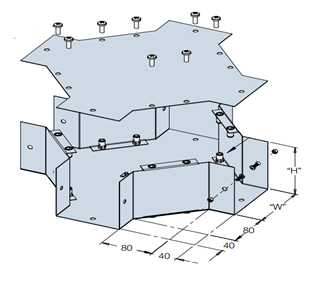

DIMENSIONS
NOTE : Equal or un equal cross can be supplied. When ordering state widths W1xW2xW3xW4
When odering
|
Range |
Type |
Size H |
Size W |
Finish |
|
D 2.0 |
C |
5 |
10 |
P |
|
D 2.0 = 2.0mm Thick D 1.5 = 1.5mm Thick D 1.2 = 1.2mm Thick D 1.0 = 1.0 mm Thick |
C = Cross RX = External Riser |
5=50mm 10=100mm …….. 30=300mm |
10=100mm 30=300mm …….. 80=800mm |
P = Powder coated H = Hot Dip Galva G = Galvanized S = Stainless Stee |
When odering
|
Range |
Type |
Size H |
Size W |
Finish |
|
D 2.0 |
C |
5 |
10 |
P |
|
D 2.0 = 2.0mm Thick D 1.5 = 1.5mm Thick D 1.2 = 1.2mm Thick D 1.0 = 1.0 mm Thick |
C = Cross RX = External Riser |
5=50mm 10=100mm …….. 30=300mm |
10=100mm 30=300mm …….. 80=800mm |
P = Powder coated H = Hot Dip Galva G = Galvanized S = Stainless Stee |
